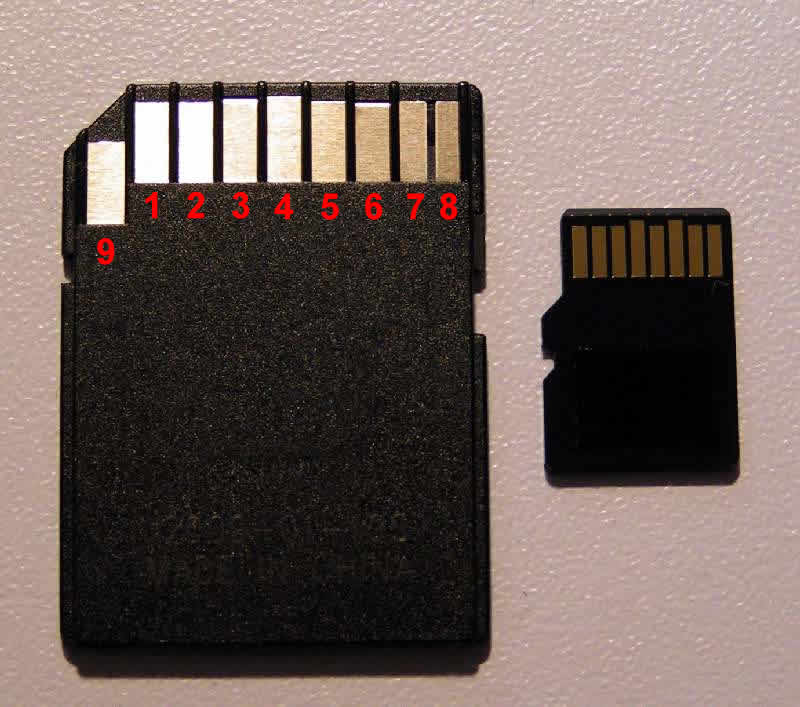

Bild-3: SD-Card PINout am Adapter
PIN
|
Belegung
|
|
1
|
CS
- Chip-Select
|
GPIO
7
|
2
|
Din
- Data-In
|
GPIO
2
|
3
|
Vss1
- Masse 1
|
GND
|
4
|
Vdd
- 3,3V (Stromversorgung)
|
3,3V
|
5
|
CLK
- Clock
|
GPIO
3
|
6
|
Vss2
- Masse 2
|
GND
|
7
|
Dout
- Data-Out
|
GPIO
4
|
8
|
not
used
|
|
9
|
not
used
|
|
